Solve your problems of transportation with brains |
|
| |
• |
To lift heavy loads up and down stairs is one of the most challenging problems of transportation. For the most part two physically strong persons are necessary for the task. Their backs and joints are extremely strained and the risk of accidents is high. |
|
| |
• |
The CargoMaster transports virtually all heavy loads with ease and little physical effort up and down stairs. One person operating the device is generally sufficient. |
|
| |
• |
The CargoMaster transports virtually all heavy loads with ease and little physical effort up and down stairs. One person operating the device is generally sufficient. |
|
| |
• |
The CargoMaster transports virtually all heavy loads with ease and little physical effort up and down stairs. One person operating the device is generally sufficient. |
|
| |
| CargoMaster A310 |
|
|
| When you transport particularly heavy loads we consider safety our highest priority. For difficult situations the standard A310 is equipped with a single step mode. The continuously adjustablespeed further helps to control and master tricky situations. Depending on the area of application the A310 can be equipped with easy running wheels or — for loads above 250 kg — with heavy-duty wheels. Both types of wheels do not damage easily. Due to the handles, adjustable in height, the A310 can adapt to the operator’s personal height as well as to particular tasks of ransportation. On level ground you may use the Cargomaster as a trolley. The adjustable toe plate makes it possible to manipulate the centre of gravity |
|
 |
| |
|
|

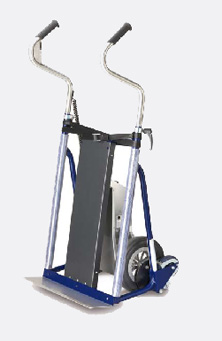

| CargoMaster A142 |
|
|

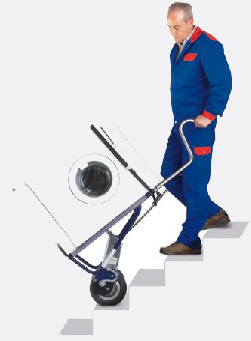

| Due to the grips adjustable in height, the device can be ideally adapted to the operator’s height. herefore, goods areeasily, safely and comfortably transported. CargoMaster is your solution, not only for the transportation of heavy goods upstairs and downstairs, but also when loading or unloading said goods. Regardless of whether you are inside or outside, the CargoMaster is suitable to virtually allIn addition to the comfortable and easy transport upstairs and downstairs, the A 142 comes in handy when loading or unloading goods. |
|
 |
| |
|
|
| CargoMaster A-series :the stair climber for professionals |
|
|
|
|
| |
| Knowledge and skill derived from long experience which has been invested into the
development of innovative power systems and climbing aids such as the CargoMaster offering you numerous advantages: |
| • |
particularly suitable for the transportation of heating furnaces, ovens, service cabinets and household appliances |
| • |
crucial relief for your delivery personnel |
| • |
safe transportation of heavy goods up to 310 kg upstairs and downstairs |
| • |
extra wide toe plate for a secure seat of the load |
| • |
ample ground clearance |
| • |
no damage of goods or stairs |
| • |
continuously adjustable climbing speed |
| • |
maintenance-free |
| • |
tyres that don’t break down |
|
|
| |
Important data at one glance |
|
| |
| Type |
|
A142 |
|
A310 |
| Carrying capacity in kg |
|
140 |
|
310 |
| Climbing speed (steps/min) |
|
8-25 |
|
4-10 |
| Capacity of one battery charge (floors, depending on the load) |
|
30-50 |
|
15-30 |
| Weight with batteries in kg |
|
32 |
|
46 |
| Height in mm |
|
1120 |
|
1130 |
| Width in mm |
|
580 |
|
590 |
| Depth in mm |
|
740 |
|
520 |
|
|
| |
• |
The company AAT Alber Antriebstechnik is a member of the QVH and has been awarded the quality stamp according to the inspection of quality standards for medical vehicles. AAT is certified according to DIN EN ISO 9001:2000 and DIN EN ISO 13485:2003. |
|
| |
|
|
|
| |
|
|
|
